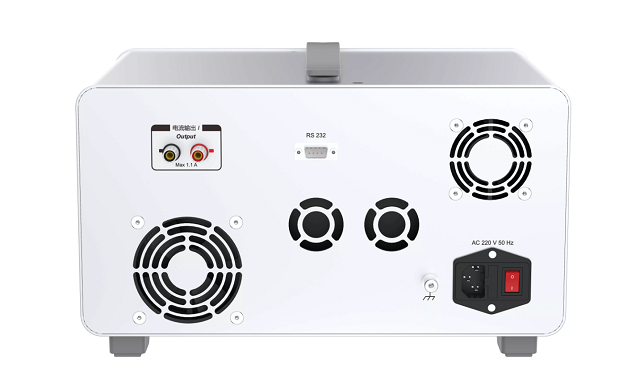

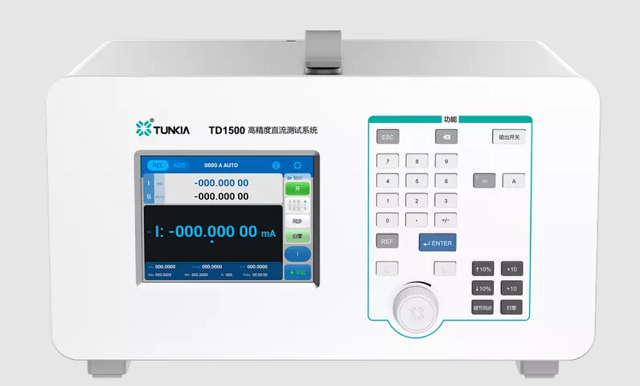

TD1500 High-precision DC Testing System
• Standard source: 1 mV ~ 1100 V (1150 V @ electric energy selection)
• Standard source: 1 μ A ~33 A / 100 A (optional)
• Standard source of DC voltage: 100 μ V~4.4 V (optional)
• Measurement function of DC voltage: 10 μ V ~ 4.4 V (optional)
• A variety of quantity and value output mode
• Special automatic test software (optional)
• Support for remote control adjustment output (optional)
• Verification of DC electricity meter (functional option)
• Secondary signal measurement of the transmitter (functional option)
Power Supply | AC (220±22) V ，(50±2) Hz |
Preheating time | 30 Minutes |
Max. Power dissipation | 700 VA |
Temperature Performance | Operating temperature: 0°C~40°C Calibration temperature: 18°C~28°C Storage temperature: -20°C~70°C |
Humidity Performance | Working Humidity: <80% @ 30°C, <70% @ 40°C, and <40% @ 50°C Storage humidity: (20%~80%) R · H, no condensation |
Altitude | < 3000 m |
Weight | About 17.5kg |
Connect mode | The RS232 interface |
Outline Dimension | 446 mm (W) × 522 mm (D) × 197 mm (H) |
