Chuẩn đo điện áp và dòng điện chính xác cao TH0520

• Direct current measurement: 10 μA~2 A.

• Direct voltage measurement: 10 mV~10.5 V.

• Frequency range: DC, 40 Hz~5 kHz.

• Current measurement uncertainty up to 50 ppm @DC.

• Voltage measurement uncertainty up to 30 ppm @DC.

• Equipped with a dedicated current sensor measurement interface.

• Set the sensor ratio to directly display the primary charge.

• Support DC ripple, 2nd~64th harmonic measurement.

• LCD touch color screen.

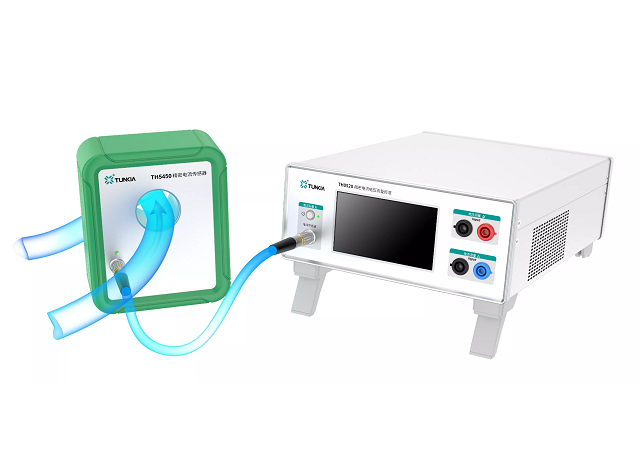

TH0520 is a Current and Voltage Measuring instrument that directly measures currents up to 2 A or 1 0.5 V voltage, mated to precision I/V, V/V conversion standards, the current sensor can be set to AC DC high current or high voltage measurement system. It can calibrate the AC and DC current standard source/meters， and also calibrate AC and DC voltage standard sources/meters.

TH0520 Precision Current and Voltage Measurement Standard

• Accurate measurement of AC and DC current and voltage on site

• Calibrate the AC and DC current standard source/meters

• Calibrate AC and DC voltage standard sources/meters
