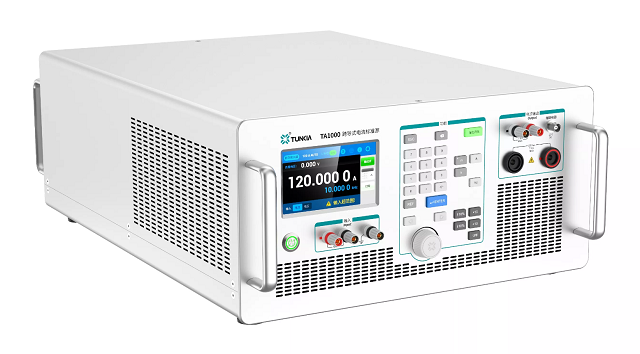

TA1000

• Accuracy: Class 0 .01

• Operating frequency: DC ~ 10 kHz

• Maximum output current: 120 A

• Short-Term stability: 0.001%

• LCD touch screen

• Can be used as wideband current standard source with the built-in signal generator

TA1000 is a high-precision and high-stability wideband current source. It can output wideband current with the built-in signal generator directly. It can also be used as a wideband transconductance amplifer to accept AC/DC Voltage/current signals from any calibrator, signal generator or power supply.

4. Specifications

Output Current Range	Input Current(Max.)	Current Gain	Maximum output compliance voltage
2 A	200 mA rms	10	4.5 V rms
20 A	200 mA rms	100	4.5 V rms
120 A	120 mA rms	1000	4.5 V rms

Output Current Range	Input Voltage(Max.)	Transconductance	Maximum output compliance voltage
2 A	2 V rms	1 Siemens	4.5 V rms
20 A	2 V rms	10 Siemens	4.5 V rms
120 A	1.2 V rms	100 Siemens	4.5 V rms

Frequency Hz	Stability(10min)	Accuracy(k=2)	Distortion %
Frequency Hz	± (%output +%Range)
2A Range
DC	0.001 + 0.001	0.010 + 0.005	—
10 ~ 65	0.001 + 0.005	0.015 + 0.070	0.1
65 ~ 1k	0.002 + 0.005	0.030 + 0.070	0.2
1k ~ 6k	0.020 + 0.040	0.300 + 0.600	0.5
6k ~ 10k	0.150 + 0.300	2.000 + 4.000	1.0
20 A Range
DC	0.001 + 0.001	0.010 + 0.005	—
10 ~ 65	0.001 + 0.004	0.015 + 0.060	0.1
65 ~ 1k	0.002 + 0.004	0.030 + 0.060	0.2
1k ~ 6k	0.020 + 0.015	0.300 + 0.200	0.5
6k ~ 10k	0.200 + 0.040	3.000 + 0.600	1.0
120 A Range
DC	0.001 + 0.001	0.01 + 0.005	—
10 ~ 65	0.001 + 0.002	0.015 + 0.020	0.1
65 ~ 1k	0.002 + 0.002	0.030 + 0.030	0.1
1k ~ 6k	0.020 + 0.015	0.300 + 0.250	0.2
6k ~ 10k	0.300 + 0.050	4.000 + 0.750	0.5

• Output current：0.2 A ~ 120 A

• Frequency：DC ~ 10 kHz

• Protective function：open-circuit protection、overload protection、over-heat protection

5. General Specifications

Line Power	AC(220±22)V，(50±2)Hz
Warmup Time	Twice the time since last warmed up, to a maximum of 30 minutes
Operating Condition	5°C~35°C，<80% R·H，non-condensing
Storage Condition	0°C~50°C，<95% R·H，non-condensing

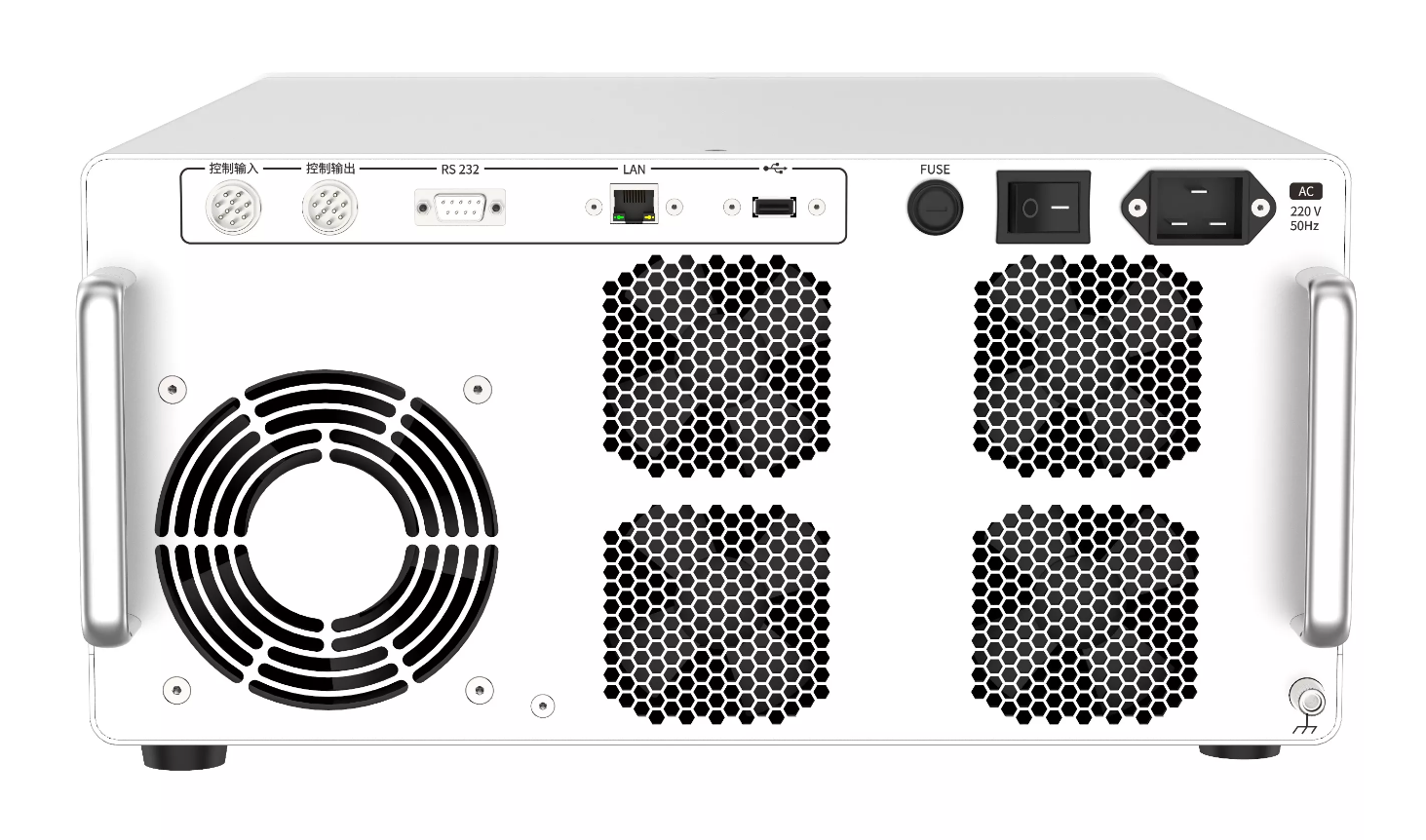

Standard Interfaces	RS232×1、USB×1、LAN×1

TA1000 Transconductance Current Standard Source

• Expand the current output range of the Multifunction source

• Calibrate wideband coaxial shunt

• Calibrate transformers

• Calibrate transducers

• Calibrate wideband ammeters

• Calibrate power meters
