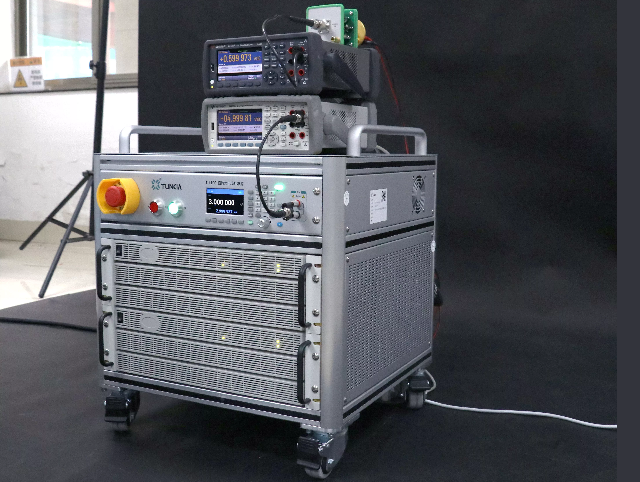

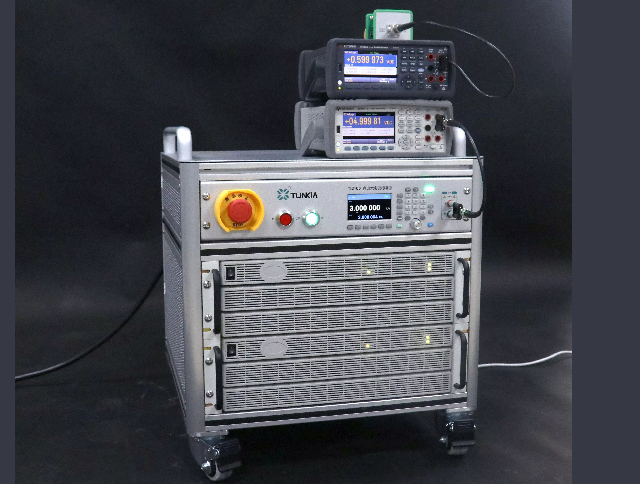

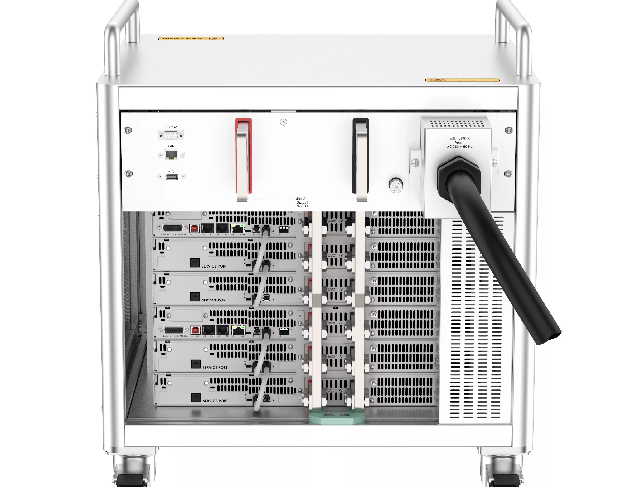

TI2100 High-Stable DC High Current Source
• Accuracy:
class 0.01.
• Single current
range, no relay shifting.
• Short-term
stability is typically better than 0.003% * FS.
• The maximum load
voltage of the constant current output is 10 V.
• The unipolar
source can be connected to an external commutator (accessory) to realize
current commutation.
• A bipolar source
(option) generates forward and reverse currents directly through the circuit.
• The constant
current output output ripple coefficient is less than 0.1%.
• LAN, RS232 interfaces.
TI2100 is a series of high-stability DC high-current standard sources for
industrial detection, which adopts a modular design and supports the
combined output of multiple sources to adapt application scenarios with
different current specifications.
-
Device Rating
Class 0.01
Range
N*1.5k A Specification
N * 1.5 kA
Output Range
(1% ~ 100%)*RG
Current Commutation
Supports external commutator (option)
Supports bipolar outputs (function option)
Maximum Load Voltage
10 V
Short-term Stability
0.003%*FS
Measurement Uncertainty (k=2)
ppm*RD①+ppm*RG②
60 + 40
Ripple Coefficient
≤ 0. 1%
Settling Time
≤1 s
Circuit Protection
Open circuit protection, overload protection, overtemperature protection
Note
(1) RD is the reading value, (2) RG is the range value
