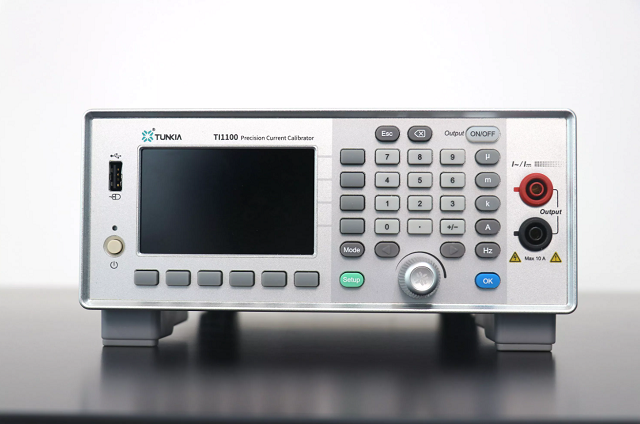

TI1100 Precision AC/DC Current Calibrator
• AC/DC current
output: 10 μA ~ 10.5 A
• Standard version
(TI1100-B) and advanced version (TI1100-C) are available
• Typical
specifications of the standard version (TI1100-B):
Frequency: DC, AC 10 Hz ~
2 kHz.
Typical short-term
stability: 0.01%/min
Optimum Accuracy: DC
0.02, AC 0.05.
• Typical
specifications of the advanced version (TI1100-C):
Frequency: DC, AC 10 Hz ~
10 kHz
Typical short-term
stability: 0.005%/min
Optimum Accuracy: DC
0.01, AC 0.02.
• Shortcut output
keys.
• Programmable
calibration schemes.

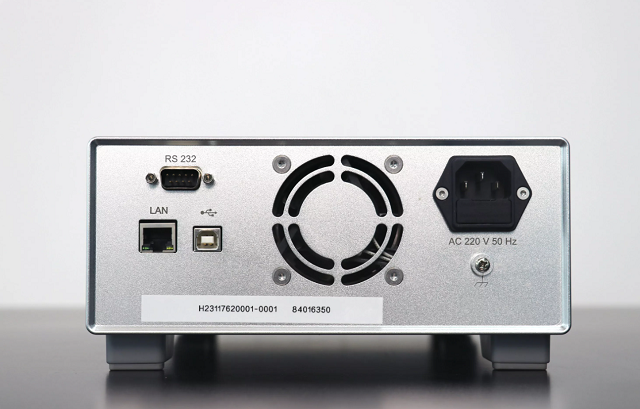

• RS232, LAN and USB
communication interfaces.
TI1100 is an AC/DC current source with high stability and precision, it is applied for calibrating ammeters on-site, e.g, industrial production lines, etc.
1. Specifications (TI1100-B)
1.1 DC Current Output
|
Range |
Current
Output |
Resolution |
Short
term stability (%/min) |
Accuracy ±(%*output
+μA) |
Compliance
Voltage (V) |
|
300 μA |
±(10.0000 μA ~
330.0000 μA) |
100 pA |
0.02 |
0.012 + 0.03 |
11 V |
|
3 mA |
±(0.300000 mA ~
3.300000 mA) |
1nA |
0.01 |
0.012 + 0.24 |
11 V |
|
30 mA |
±(3.00000 mA ~
33.00000 mA) |
10 nA |
0.01 |
0.012 + 2.4 |
9 V |
|
300 mA |
±(30.0000 mA ~
330.0000 mA) |
100 nA |
0.01 |
0.012 + 24 |
7 V |
|
1A |
±(0.100000 A ~
1.100000 A) |
1μA |
0.01 |
0.012 + 80 |
6 V |
|
10 A |
±(1.00000 A ~
10.50000 A) |
10 μA |
0.01 |
0.012 + 800 |
4 V |
• Output range: ±(10 μA ~ 10.5 A).
• 7 digits display.
• Adjustment fineness: 0.002% * RG.
• Ripple coefficient:<0.1%.
• Protection function: open circuit protection,
overload protection, overheating protection.
1.2 AC Current Output
|
Range |
Current
Output |
Frequency |
Resolution |
Accuracy ±
(%*output +μA) |
Compliance
Voltage (rms) |
|
300 μA |
10.0000 μA ~
330.0000 μA |
10 Hz ~ 45 Hz |
100 pA |
0.05 + 0.2 |
7 V |
|
45 Hz ~ 400 Hz |
0.03 + 0.1 |
||||
|
400 Hz ~ 2 kHz |
0.04 + 0.2 |
||||
|
3 mA |
0.300000 mA ~
3.300000 mA |
10 Hz ~ 45 Hz |
1nA |
0.05 + 0.5 |
7 V |
|
45 Hz ~ 400 Hz |
0.03 + 0.3 |
||||
|
400 Hz ~ 2 kHz |
0.04 + 0.5 |
||||
|
30 mA |
3.00000 mA ~
33.00000 mA |
10 Hz ~ 45 Hz |
10 nA |
0.05 + 5 |
6 V |
|
45 Hz ~ 400 Hz |
0.03 + 3 |
||||
|
400 Hz ~ 2 kHz |
0.04 + 5 |
||||
|
300 mA |
30.0000 mA ~
330.0000 mA |
10 Hz ~ 45 Hz |
100 nA |
0.05 + 50 |
5 V |
|
45 Hz ~ 400 Hz |
0.03 + 30 |
||||
|
400 Hz ~ 2 kHz |
0.04 + 50 |
||||
|
1A |
0.100000 A ~
1.100000 A |
10 Hz ~ 45 Hz |
1μA |
0.05 + 150 |
4 V |
|
45 Hz ~ 400 Hz |
0.03 + 100 |
||||
|
400 Hz ~ 2 kHz |
0.04 + 150 |
||||
|
10 A |
1.00000 A ~
10.50000 A |
45 Hz ~ 400 Hz |
10 μA |
0.03 + 1000 |
2.5 V |
|
400 Hz ~ 2 kHz |
0.04 + 1500 |
• Output range: ± (10 μ A ~ 10.5 A).
• 7 digits display.
• Adjustment fineness: 0.002% * RG.
• Distortion: <0.3%.
• Protection function: open circuit protection,
overload protection, overheating protection.
1.3 Frequency
|
Range |
Resolution |
Accuracy
(± %*RD) |
|
10.00000 Hz ≤ F
≤ 99.99999 Hz |
0.01 mHz |
0.01 |
|
100.0000 Hz ≤ F
≤ 999.9999 Hz |
0.1 mHz |
0.01 |
|
1.000000 kHz ≤
F ≤ 2.000000 kHz |
1 mHz |
0.01 |
2. Specifications (TI1100-C)
2.1 DC Current Output
|
Range |
Current
Output |
Resolution |
24-hour
Stability (Tcal ± 1°C) |
Accuracy 1year(Tcal
± 5°C) |
Compliance
Voltage |
|
±
(ppm*output + μA) |
|||||
|
100 μA |
±(10.0000 μA ~
110.0000 μA) |
100 pA |
50 + 0.01 |
100 + 0.02 |
10 V |
|
1 mA |
±(0.100000 mA ~
1.100000 mA) |
1nA |
40 + 0.02 |
80 + 0.04 |
10 V |
|
10 mA |
±(1.00000 mA ~
11.00000 mA) |
10 nA |
30 + 0.2 |
60 + 0.4 |
9 V |
|
100 mA |
±(10.0000 mA ~
110.0000 mA) |
100 nA |
30 + 2 |
60 + 4 |
7 V |
|
1 A |
±(0.100000 A ~
1.100000 A) |
1 μA |
30 + 20 |
60 + 40 |
4 V |
|
10 A |
±(1.00000 A ~
10.50000 A) |
10 μA |
50 + 300 |
100 + 500 |
4 V |
• Output range: ± (10 μA ~ 10.5 A).
• 7 digits display.
• Adjustment fineness: 0.002% * RG.
• Ripple coefficient: <0.1%.
• Protection function: open circuit protection,
overload protection, overheating protection
2.2 AC Current Output
|
Range |
Current
Output |
Frequency |
Resolution |
Accuracy ±
(%*output +μA) |
Compliance
Voltage (rms) |
|
100 μA |
10.0000 μA ~
110.0000 μA |
10 Hz ~ 45 Hz |
100 pA |
800 + 0.04 |
6.5V |
|
45 Hz ~ 2 kHz |
600 + 0.04 |
||||
|
2 kHz ~ 10 kHz |
800 + 0.1 |
||||
|
1 mA |
0.100000 mA ~
1.100000 mA |
10 Hz ~ 45 Hz |
1 nA |
300 + 0.1 |
6.5V |
|
45 Hz ~ 2 kHz |
200 + 0.1 |
||||
|
2 kHz ~ 10 kHz |
300 + 0.2 |
||||
|
10 mA |
1.00000 mA ~
11.00000 mA |
10 Hz ~ 45 Hz |
10 nA |
200 + 0.8 |
6 V |
|
45 Hz ~ 2 kHz |
120 + 0.8 |
||||
|
2 kHz ~ 10 kHz |
300 + 2 |
||||
|
100 mA |
10.0000 mA ~
110.0000 mA |
10 Hz ~ 45 Hz |
100 nA |
200 + 8 |
5 V |
|
45 Hz ~ 2 kHz |
120 + 8 |
||||
|
2 kHz ~ 10 kHz |
300 + 20 |
||||
|
1 A |
0.100000 A ~
1.100000 A |
10 Hz ~ 45 Hz |
1μA |
200 + 80 |
3.5 V |
|
45 Hz ~ 2 kHz |
120 + 80 |
||||
|
2 kHz ~ 10 kHz |
300 + 200 |
||||
|
10 A |
1.00000 A ~
10.50000 A |
10 Hz ~ 45 Hz |
10 μA |
200 + 1000 |
2.5 V |
|
45 Hz ~ 2 kHz |
120 + 1000 |
||||
|
2 kHz ~ 5 kHz |
300 + 2000 |
• Output range: ± (10 μA ~ 10.5 A).
• 7 digits display.
• Adjustment fineness: 0.002% * RG.
• Distortion:<0.5%
• Protection function: open circuit protection,
overload protection, overheating protection.
2.3 Frequency
|
Range |
Resolution |
Accuracy
(± %*RD) |
|
10.00000 Hz ≤ F
≤ 99.99999 Hz |
0.01 mHz |
0.01 |
|
100.0000 Hz ≤ F
≤ 999.9999 Hz |
0.1 mHz |
0.01 |
|
1.000000 kHz ≤
F ≤ 9.999999 kHz |
1 mHz |
0.01 |
|
10.00000 kHz |
10 mHz |
0.01 |
