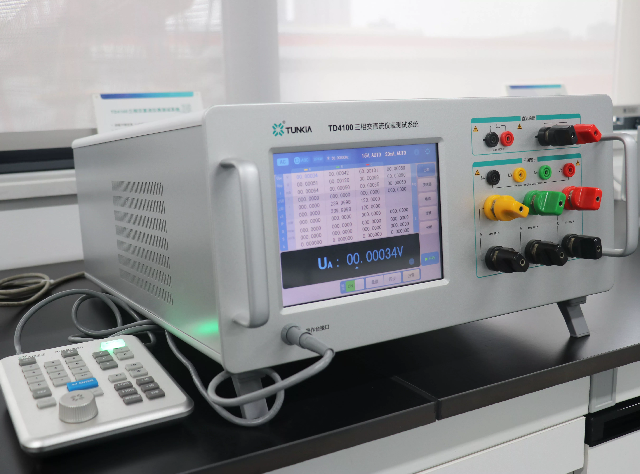

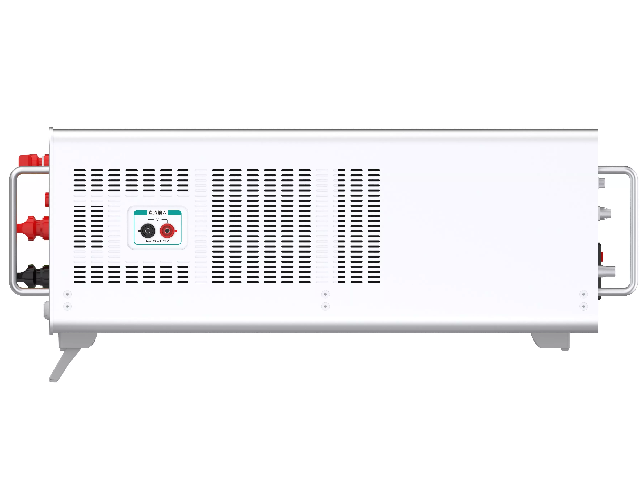

TD4100 Portable Tester for Three-phase and DC Meters
• 3PH AC voltage
output：1 V～825 V
• 3PH AC current
output：2 mA～110 A
• Frequency：45 Hz～70
Hz
• U-I phase:0°～360°
• DC voltage output：5 mV～1100 V
• DC current
output：1 μA～33 A
• Accuracy
class: 0.02, 0.05.
• 2nd~21st harmonic
output (option)
• Transmitter test
function (option）
• AC energy meter
test function (option）
• Test software (option）
TD4100 is a
multifunctional 3PH power source. It integrates AC/DC power output
function, harmonic function, transmitter test function, AC energy
meter test function. Can be used to calibrate AC/DC voltmeter, AC/DC
ammeter, AC/DC power meter, electric energy meter and transmitter, etc.
1 Three-Phase Voltage Output
|
Voltage Range |
Resolution |
Stability ( %/min ) |
Accuracy ±(ppm of reading + ppm of range) [1] |
Max Burden (mA) |
||
|
Class 0.05 |
Class 0.02 |
Class 0.05 |
Class 0.02 |
|||
|
15 V |
0.1 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
500 |
|
57.7 V |
0.1 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
500 |
|
100 V |
1 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
300 |
|
220 V |
1 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
140 |
|
380 V |
1 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
80 |
|
600 V |
1 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
50 |
|
750 V |
10 mV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
30 |
|
Note [1] : (ppm
= parts per million) (e.g.，10ppm = 0.001%). |
||||||
• Three-phase voltage output：1 V～825
V;
• Degree of distortion：<0.2%
• Short circuit and overload protection
2 Three-Phase Current Output
|
Current Range |
Resolution |
Stability ( %/min ) |
Accuracy ±(ppm of reading + ppm of range) [1] |
Max Burden (V) |
||
|
Class 0.05 |
Class 0.02 |
Class 0.05 |
Class 0.02 |
|||
|
20 mA |
0.1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
60 |
|
50 mA |
0.1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
60 |
|
100 mA |
1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
60 |
|
200 mA |
1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
30 |
|
500 mA |
1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
30 |
|
1 A |
10 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
30 |
|
2 A |
10 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
6 |
|
5 A |
10 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
6 |
|
10 A |
100 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
2.5 |
|
20 A |
100 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
1.2 |
|
50 A |
100 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
0.8 |
|
100 A |
1 mA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
0.8 |
• Three-phase current output：2 mA～110
A；
• Degree of distortion：<0.2%
• Current open-circuit and overload protection
3 Frequency / Phase / Harmonic
|
Symmetry |
Voltage superior
to 0.2%；Current superior
to 0.5%；Phase
superior to 0.5° |
|
Frequency |
Range：45 Hz～70 Hz；Adjustment
fineness：0.001
Hz； Accuracy：±0.02 Hz (class 0.05), ±0.01 Hz(class
0.02) |
|
Phase |
Range：0.000 0°;～359.999 9°；Adjustment
fineness：0.001°； Accuracy：±0.02° (class 0.05), ±0.01°(class 0.02) |
|
Harmonic（optional） |
2nd～21st harmonic； Amplitude 0～25% adjustable；Phase 0～359.99°adjustable |
4 Three-Phase Power Output
|
Current Range |
Stability (
%/min ) |
Accuracy ( ±
%*FS)[2] |
||
|
Class 0.05 |
Class 0.02 |
Class 0.05 |
Class 0.02 |
|
|
Active
power |cosφ|≥0.5 |
0.01 |
0.005 |
0.05 |
0.02 |
|
Reactive power |sinφ|≥0.5 |
0.02 |
0.01 |
0.1 |
0.05 |
|
Apparent power |
0.02 |
0.01 |
0.1 |
0.05 |
|
Power factor |
0.02 |
0.01 |
0.1 |
0.05 |
|
Note [2]
:FS= voltage range × current range |
||||
• Power factor range：-1.000 000…0.000 000…1.000 000
5 DC Voltage Output
|
Voltage Range |
Resolution |
Stability ( %/min ) |
Accuracy ±(ppm of reading + ppm of range) [1] |
Max Burden (mA) |
||
|
Class 0.05 |
Class 0.02 |
Class 0.05 |
Class 0.02 |
|||
|
75 mV |
0.1 μV |
0.01 |
0.005 |
300 + 200 |
120 + 120 |
10 |
|
100 mV |
1 μV |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
300 mV |
1 μV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
1 V |
10 μV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
3 V |
10 μV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
10 V |
100 μV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
30 V |
100 μV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
500 |
|
60 V |
100 μV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
150 |
|
100 V |
1 mV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
150 |
|
300 V |
1 mV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
50 |
|
600 V |
1 mV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
25 |
|
1000 V |
10 mV |
0.005 |
0.005 |
300 + 200 |
120 + 80 |
15 |
• DC voltage output range：5 mV～1100
V,
• Ripple factor：<
1%
• Short circuit and overload protection
6 DC Current Output
|
Current Range |
Resolution |
Stability ( %/min ) |
Accuracy ±(ppm of reading + ppm of range) [1] |
Max Burden (V) |
||
|
Class 0.05 |
Class 0.02 |
Class 0.05 |
Class 0.02 |
|||
|
10 μA |
0.1 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
30 μA |
0.1 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
100 μA |
1 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
300 μA |
1 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
1 mA |
10 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
3 mA |
10 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
10 mA |
100 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
30 mA |
100 nA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
100 mA |
1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
10 |
|
300 mA |
1 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
4 |
|
1 A |
10 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
4 |
|
3 A |
10 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
4 |
|
10 A |
100 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
3 |
|
30 A |
100 μA |
0.01 |
0.005 |
300 + 200 |
120 + 80 |
2.5 |
• DC current output range：1 μA～33
A,
• Ripple factor：<
1%
• Current open-circuit and overload protection
7 DC Meter (option）
|
Range |
Measurement
Range |
Accuracy |
Measurement
Range of Ripple |
Accuracy
of Ripple |
|
1 V |
± ( 0～1.2 ) V |
± 0.01%*range |
0～30 mV |
± 1 mV |
|
10 V |
± ( 0～12 ) V |
± 0.01%*
range |
0～300 mV |
± 10 mV |
|
2 mA |
± ( 0～2.4) mA |
± 0.01%*
range |
0～60 μA |
± 2 μA |
|
20 mA |
± ( 0～24 ) mA |
± 0.01%*
range |
0～600 μA |
± 20 μA |
|
Note：This DC Meter is used to test second
signal of Transmitter |
||||
8 AC Energy Testing（option）
|
Type |
Accuracy |
|
|
Class 0.05 |
Class 0.02 |
|
|
Active
electrical energy |
± 0.1%*reading |
± 0.05%*reading |
|
Reactive
electrical energy |
± 0.2%*reading |
± 0.1%*reading |
• Energy pulse output：full range for 60 kHz
• Energy pulse input：max frequency is 200 kHz，pulse level：3
V～12 V
• Constant setting of Electrical energy meter：1…1000000 imp./kwh or 1…1000000 imp./ws
9. General Specifications
|
Power
Supply |
AC ( 220 ± 22 )
V，( 50 ± 2 ) Hz |
|
Temperature
Performance |
Working
temperature：0℃~45℃; Storage temperature：-20℃~70℃ |
|
Humidity
Performance |
Working
humidity：<
80% @ 30℃，<
70% @ 40℃，<
40% @ 50℃ Storage humidity：(20%~80%) R·H，actnon-condensing |
|

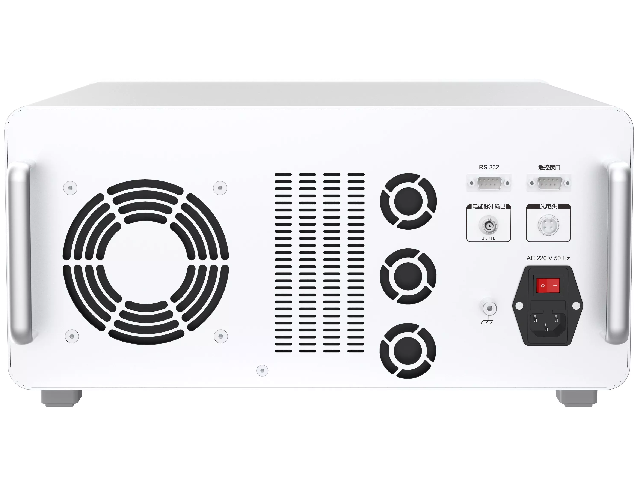

Interface |
RS232 |
