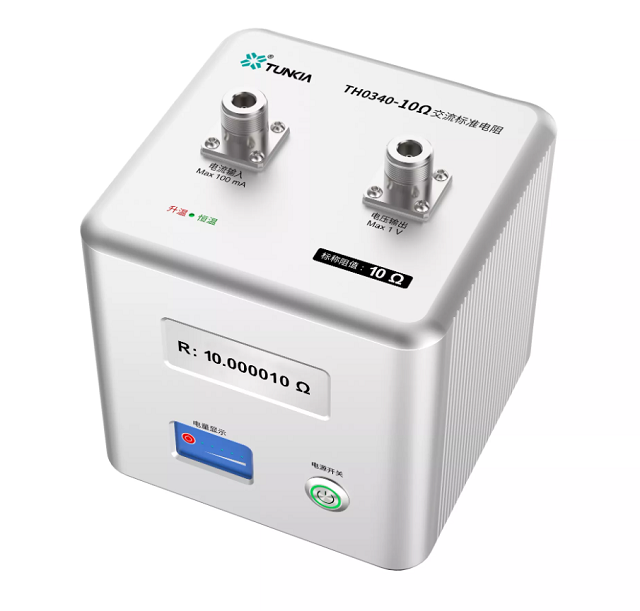

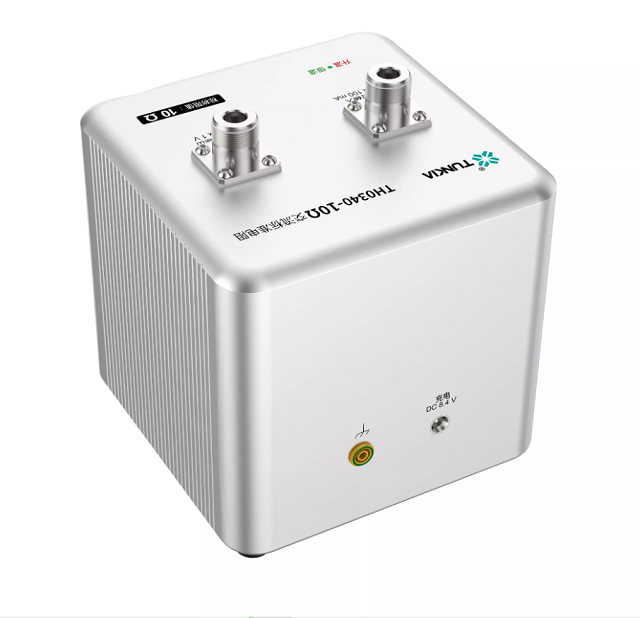

TH0340
• Available wide range of resistance values at 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ.
• Long-term stability: 5 ppm/year (typical)
• Temperature coefficient: 0.2 ppm/°C(typical)
• Battery supply.
• No oil or air baths required
• 18°C~ 28°C operating range
• Small and rugged
TH0340 is a series of reference temperature-controlled AC resistance standards. It’s suitable for calibrating AC impedance meters (LCR).
Power supply | Battery, at least for 7 hours. |
Temperature performance | Operating temperature: 18°C ~ 28°C; Storage temperature: -10°C ~ 55°C; |
Humidity performance | Working humidity: (40%-60%) R·H, no condensation; Storage humidity: ＜95% R·H, no condensation; |
Weight | About 0.5 kg |
Dimensions | 100 mm (W)×100 mm (D) ×104 mm (H) (excluding terminals and footpads) |
3.1 AC Resistance
3.2 Auxiliary Performance
