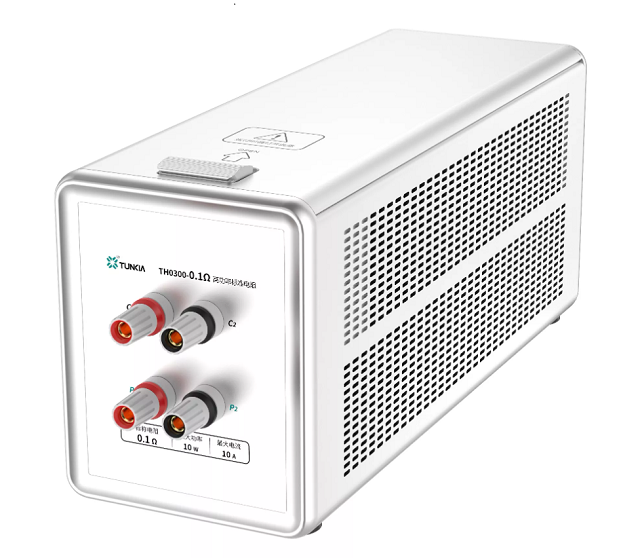

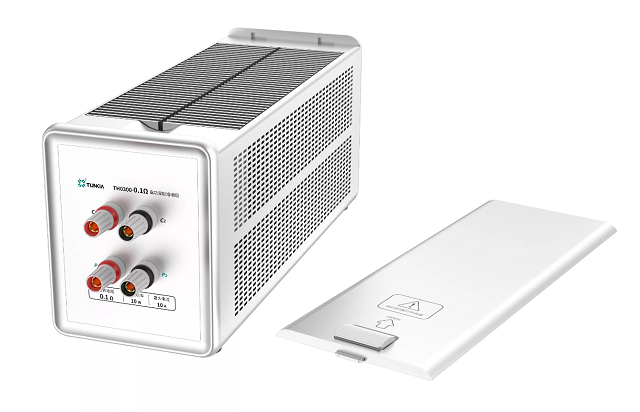

TH0300
• Nominal resistance: 0.1 Ω ~ 10 Ω
• Maximum operating current: 11 A
• Long-term stability: 5 ppm/year (typical)
• Temperature coefficient: 1 ppm /°C
• Low thermal potential
• On-site test
TH0300 is a series of reference high power resistance standards, it’s applied for precise AC and DC current measurement at high power conditions.
Power supply | —— |
Temperature performance | Operating temperature: 18°C ~ 28°C; Storage temperature: -10°C ~ 55°C; |
Humidity performance | Operating humidity: (40%-60%) R·H, no condensation; Storage humidity: 95% R·H, no condensation; |
Specifications
