TH0200


• Current output: 10 μA ~ 10 A.

• Resistance measurement: 1 mΩ ~ 100 kΩ (customizable).

• Typical uncertainty value of resistance measurement: 10 ppm.

• Built in standard resistance for reference.

• Measurement mode: Precision / Quick.

• RS232 interface.

• LCD touch screen.

• Statistical analysis.

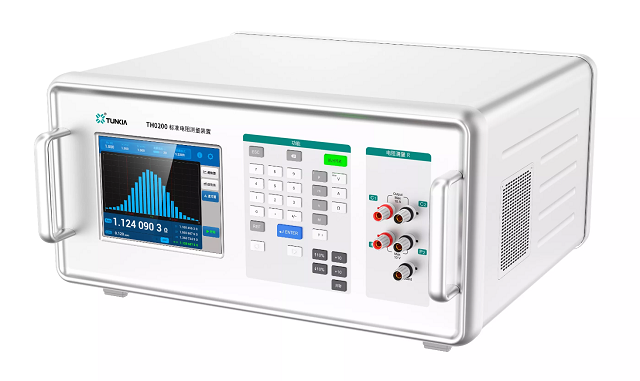

TH0200 is a resistance measuring instrument with high precision and wide range, it’s applied for the measurement, comparison, transmission, verification of standard resistance.

Resistor

Resolution

Excitation Current

Test Power

Meas. Accuracy

(k=2 , ± μΩ/Ω)

1 mΩ

100 pΩ

3.16 A ~ 10 A

10 mW~100 mW

30

10 mΩ

1 nΩ

1 A ~ 3.16 A

10 mW~100 mW

15

100 mΩ

10 nΩ

0.316 A ~ 1 A

10 mW~100 mW

10

1 Ω

100 nΩ

0.1 A ~ 0.316 A

10 mW~100 mW

10

10 Ω

1 μΩ

31.6 mA ~100 mA

10 mW~100 mW

10

100 Ω

10 μΩ

10 mA ~ 31.6 mA

10 mW~100 mW

10

1 kΩ

100 μΩ

3.16 mA ~ 10 mA

10 mW~100 mW

10

10 kΩ

1 mΩ

0.316 mA ~ 1 mA

1 mW~10 mW

10

100 kΩ

10 mΩ

31.6 μA ~ 100 μA

0.1 mW~1 mW

20



5. General Specifications

Power supply

AC ( 220 ±22 ) V,( 50±2 ) Hz;

Warm up time

Twice the time since last warmed up, to a maximum of 60 minutes.

Maximum power consumption

150 VA

Temperature performance

Operating temperature: 18°C ~ 28°C;

Storage temperature: -20°C ~ 60°C;

Humidity performance

Operating humidity: (20 % ~ 50%) R·H, non-condensing;

Storage humidity: (15% ~ 80%) R·H, non-condensing;

Weight

About 17.5 kg

Communication interface

RS 232

Dimensions


440 mm(W)×375 mm(D)×230 mm(H) (Excluding handles and feets)
