TH0320

    • Long-term stability: 3 ppm/year (typical)

    • Temperature coefficient: 1 ppm/°C

    • Nominal resistance: 1 Ω ~ 10 MΩ

    • Low thermal potential terminal

• No oil or air baths required

• 18°C~ 28°C operating range

• Small and rugged

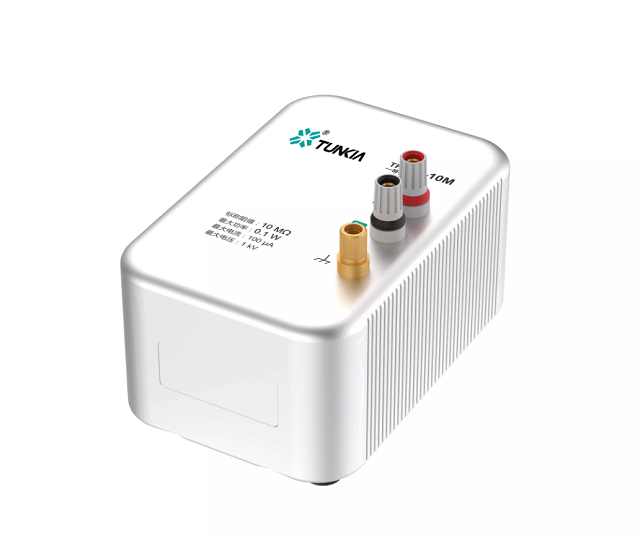

TH0320 is a series of precision standard resistors, suitable for measuring a wide range of precision current, it can also be applied for calibrating multifunction calibrators, high precision digital multi-meter, etc.

General Specifications

Power supply

——

Temperature performance

Operating temperature: 18°C~ 28°C;

Storage temperature: -10°C ~ 60 °C;

Humidity performance

Working humidity :(40%-60%) R·H, no condensation;

Storage humidity: ＜ 95% ·H, no condensation;

Weight

About 1 kg

Dimensions


100 mm(W) ×150 mm(D)× 70 mm (H) (excluding terminals and footpads)

Specifications

Model

Nominal Resistance @ 23°C

Initial Deviation ( ±ppm )

Accuracy

( ±ppm )

Annual

Stability

( ±ppm )

Temperature Coefficient

       ( ±ppm/°C)

Wiring

TH0320-1R

1 Ω

5

2.5

3

0.2

4W

TH0320-10R

10 Ω

5

2.5

3

0.2

4W

TH0320-100R

100 Ω

5

2.5

3

0.2

4W

TH0320-1kR

1 kΩ

5

2.5

3

0.2

4W

TH0320-10kR

10 kΩ

5

2.5

3

0.2

4W

TH0320-100kR

100 kΩ

5

2.5

3

0.2

2W

TH0320-1MR

1 MΩ

5

2.5

3

0.2

2W

TH0320-10MR

10 MΩ

10

5

6

0.2

2W


Model

Nominal Power( W )

Power Factor

        ( ±ppm/W )

Maximum

Current ( A )

Maximum

Voltage ( V )

TH0320-1R

0.5

10

707

0.707

TH0320-10R

0.1

10

100

1.00

TH0320-100R

0.1

10

31.6

3.16

TH0320-1kR

0.1

10

10

10

TH0320-10kR

0.1

10

3.16

31.6

TH0320-100kR

0.1

10

1

100

TH0320-1MR

0.1

10

0.316

316

TH0320-10MR

0.1

10

0.1

1000
