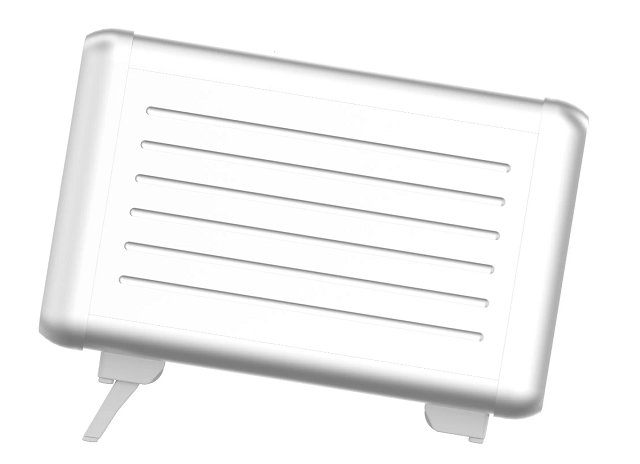

TD1450
• Accuracy: Class 0.02/ Class 0.05
• Maximum current measurement: 60 A (120A, 240A, 600A optional).
• DC resistance simulation: 1 μΩ ~ 200 Ω (related to current specification).
• AC resistance simulation: 30 μΩ ~ 150 Ω (dependent on current specification).
• Input current ripple or harmonic measurement function.
• Displaying the waveform of the measured current.
• Statistical analysis
• LCD touch screen
• Specialized automation testing software
Power supply | AC ( 220 ± 22 )V，( 50 ± 2 )Hz |
Maximum power consumption | 100 VA |
Warm-up time | ≥ 30 min |
Temperature performance | Working temperature: 18°C ~ 28°C; Storage temperature: -20°C ~ 70°C. |
Humidity performance | Operating humidity: ( 40% ~ 80% ) R·H, no condensation Storage humidity: <80% R·H, no condensation |

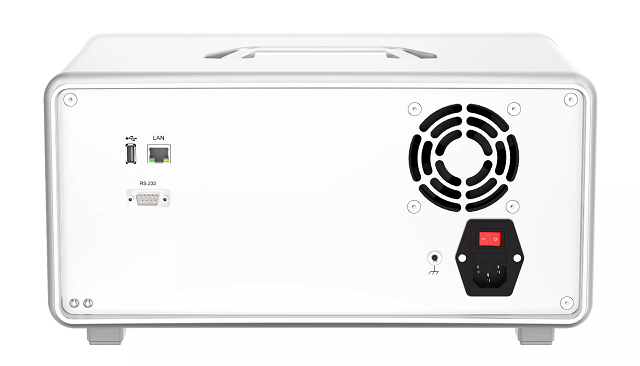

Communication interface | LAN、USB、RS232 |
Quality | Approx 12.5 kg |
Size | 400 mm (W) X 300 mm (D) X 190 mm (H) (excluding handlebars and feet). |
