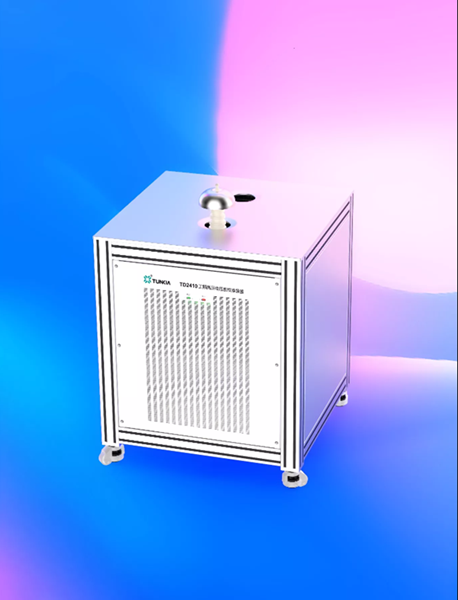

TD2410

• AC voltage output: 1kV～35 kV.

• Accuracy class: 0.02, 0.05.

• Frequency: 45 Hz～65 Hz.

• 2nd~11th harmonic output (option).

• Short-circuit and overload protection.

• LCD touch screen

• High voltage switch for safety.

• RS232 interface.

TD2410 is a high precision and multi-function AC standard high voltage source with wide rang. It’s applied for calibrating AC high voltage meter, withstanding voltage testers, high voltage probe etc.

5. Specifications

Range	Resolution	Stability (%/min)	Accuracy ±(ppm of reading + ppm of range) [1]		Distortion ( % )
			Class 0.05	Class 0.02
10 kV	100 mV	0.01	300 + 200	120 + 80	≤ 0.5
35 kV	100 mV	0.01	300 + 200	120 + 80	≤ 0.5
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%).

• Output range: 1 kV～35 kV，6 digits true RMS，max burden: 600 VA

• Frequency range: 45.000 Hz～65.000 Hz，uncertainty：0.01Hz

• Short-circuit and overload protection

• Harmonic function(option): 2nd~11th harmonic, 0～25% adjustable

6. General Specifications

Power Supply	AC (220 ± 22) V，(50 ± 2) Hz
Temperature	Working temperature：0℃~45℃； Storage temperature：-20℃~70&℃
Humidity	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50&℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232 interface

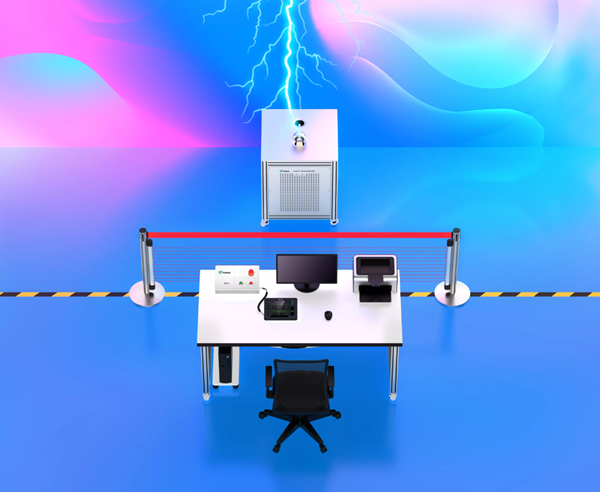

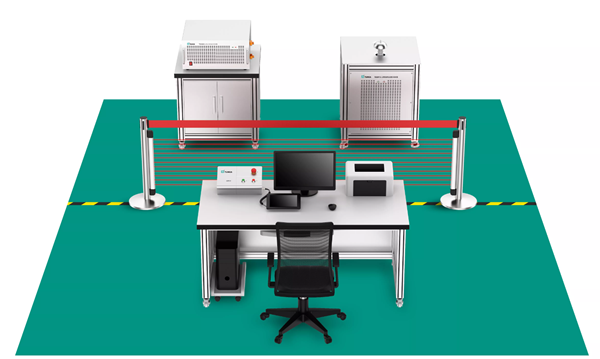

TD2410 High Voltage Meters Calibration Device

• AC voltage ( ACV ) output: 1 kV～35 kV

• Apply to the calibration of alternating high voltage meter，high voltage probe etc.

TD2410

Related Products

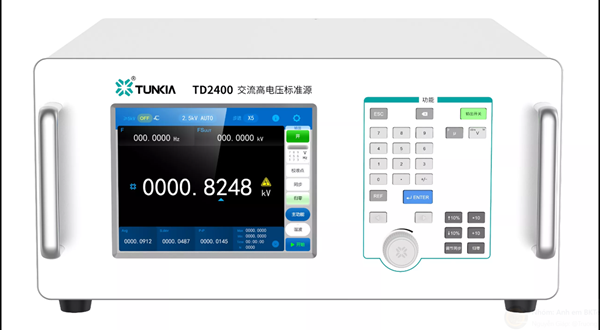

TD2400

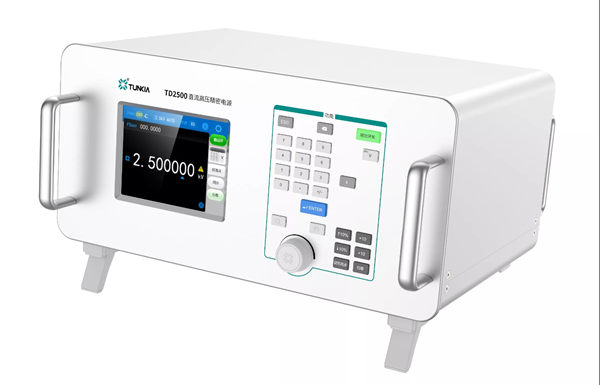

TD2500

TD2550

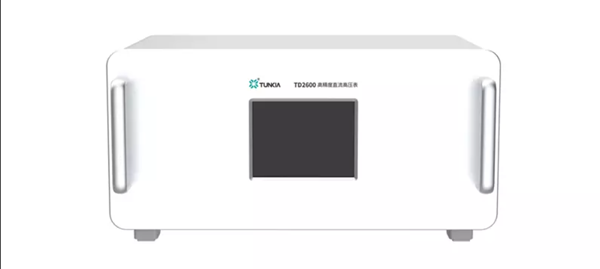

TD2600

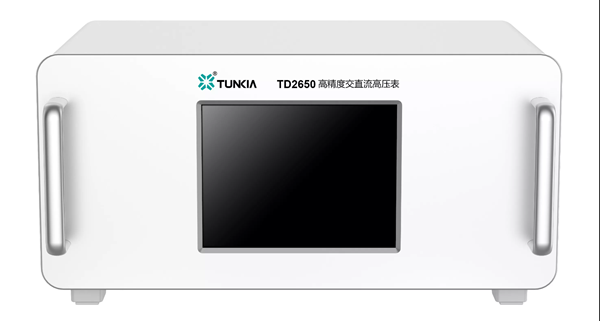

TD2650
