H6Flex

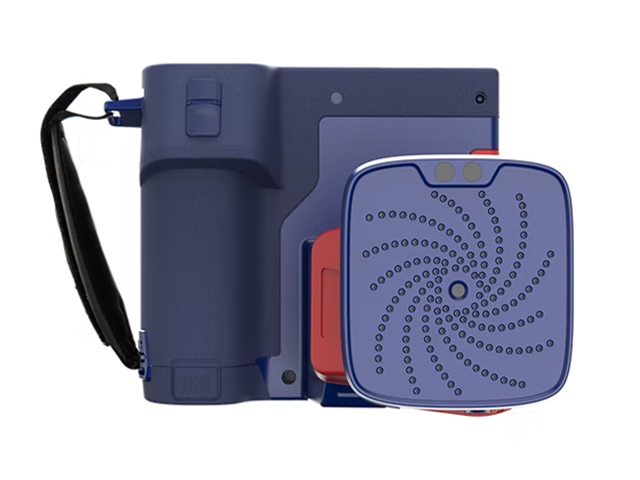

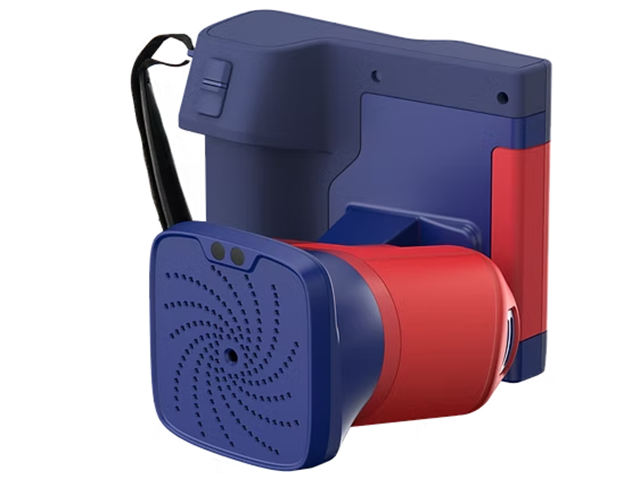

Redefine inspection agility with the FOTRIC H6Flex Acoustic Imaging Camera. Featuring a fully articulating module, the H-Flex adapts to your angle, making it easier to access tight, hard-to-reach spaces without strain. Its ergonomic design enhances user comfort and inspection efficiency, while advanced acoustic sensing delivers pinpoint leak and discharge detection. Built for flexibility, the A-Flex empowers you to work smarter in complex industrial environments.
Redefine inspection agility with the FOTRIC H6Flex Acoustic Imaging Camera. Featuring a fully articulating module, the H-Flex adapts to your angle, making it easier to access tight, hard-to-reach spaces without strain. Its ergonomic design enhances user comfort and inspection efficiency, while advanced acoustic sensing delivers pinpoint leak and discharge detection. Built for flexibility, the A-Flex empowers you to work smarter in complex industrial environments.

Model

FOTRIC H6Flex

Microphone channel

162 MEMS digital microphones

Acoustic Image Field of View (FOV)

 66° × 52°

Acoustic Sampling Rate

200kHz

Acoustic Refresh Rate

25Hz

Working Distance

 0.3~200m(1~626ft）

Detection Mode

Leakage mode: displays the leakage level on the device.

Partial discharge mode: display PRPD chart, suitable for different AC frequencies

(50/60Hz).

On-device Analysis

The device is capable of directly analyzing acoustic images and Holographic acoustic videos

Display Screen

5-inch, 1280*720 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover

Digital Camera

13 Megapixels, Industrial-Grade Digital Camera

NaviPdM

AI Inspection Assistant

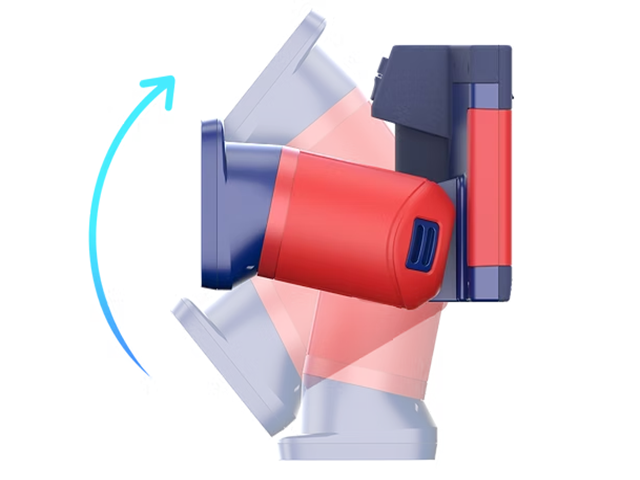

Articulate Microphone Array

180° Rotatable

Acoustic Image Delay (T-FFTD®)

Captures instantaneous sound signals, can stay longer in real-time acoustic image

Acoustic Image Focus

Masks surrounding areas, focuses only on the acoustic image of the focused area

On-device Report Generation

Support Word or PDF format

Partial Discharge Diagnosis

discharge, and corona discharge, as well as their severity

Gray Scale Background

Display digital camera images in grayscale

Favorites

Click the favorite button to save the favorite status to the acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status in the gallery

Storage Card

SD card, hot-swappable, maximum support 1TB

Battery Operating Time

Actual usage time depends on environmental and usage conditions

Battery Type

3.6V, 9900mAh Rechargeable Lithium Battery, Field-Replaceable

Supported Languages

English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai

Standard Configuration

Acoustic imaging camera main unit, rechargeable lithium battery * 2, charging dock, power adapter, USB Type-C to USB cable, Micro HDMI to HDMI cable, 128G SD card, SD card reader, accessory bag (wrist strap, 2 wrist strap holders, 2 M4*8 screws, lanyard, hex wrench, SIM eject tool), document bag (packing list, quick start guide), portable soft bag, hard carrying case, outer packaging box
