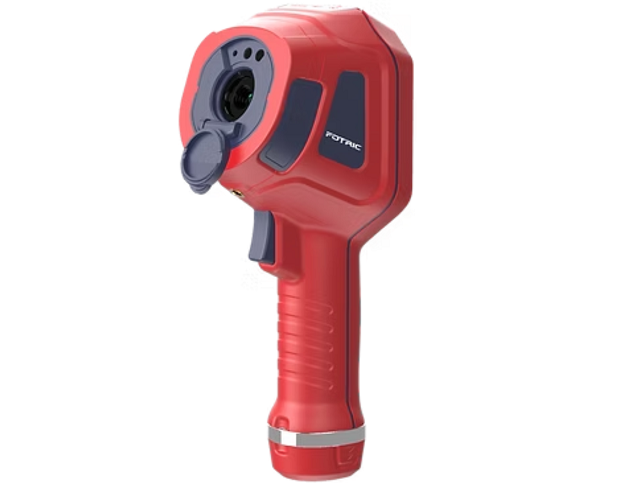

FOTRIC C2
FOTRIC C2 is a compact and affordable handheld thermal camera for facility maintenance use. Its 160x120 resolution, 50 mK sensitivity, manual focus, and the Android platform interface all provide intuitive experiences for you to get started. This camera is equipped with a 46-degree wide-angle lens to meet requirements from different industries like building inspection and manufacturing.
| Key Features | C2 |
| Super Resolution(SR) | 160*120 |
| Thermal Sensitivity（NETD) | ＜ 50mk@30℃ (86 ℉ ) |
Lens /Field of View | 46° x35° |
| Focus Mode | Manual Focus |
| Wi-Fi & Bluetooth | 2.4GHz and 5 GHz frequency, support 902.11a/b/g/n/ac； BT4.2 LE, connectable to bluetooth headphone |
| Build-in digital camera | 8MP industrial grade camera |
| Frame Rate | 30Hz |
| Temperature Range | -20℃ ~550℃（-4 ℉ to 1022 ℉） |
Accuracy | ±2℃ (3.6 ℉ ) or ± 2 %, whichever is greater (ambient temp at 77 ℉ ) |
| Measurement Tools | Spot：6 Line：1 Rectangle/Circle：6 |
| Display Screen | 3.5 inch touch screen (640 x 480) |
| Palettes | 8; Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
| Storage Card | TF card, 32GB |
On-device Analysis | Support (Radiometric Image and Video Data) |
QR Code Functionality | Support QR code and Barcode scanning |
| Remote Display | Support Radiometric IR Video Streaming over type-C 3.0 interface; non-radiometric IR video streaming over HDMI interface and IRExplorer ™ |
| Battery | Rechargeable Li-ion, 3.6V, 5000mAh |
| Battery operating time | ≥ 4 hours per battery |
| Operation temperature | -20℃ (-4 ℉ ) to 50℃ (122 ℉ ) |
| Storage temperature | -40℃ (-40 ℉ ) to 70℃ (158 ℉ ) (without battery) |
| Drop | Engineered to withstand 2 meters (6.5 feet) drop with standard lens |
| Weight | 730g |
Enclosure Rating | IP54(IEC 60529) |
Recommended Calibration Cycle | 2 years |
