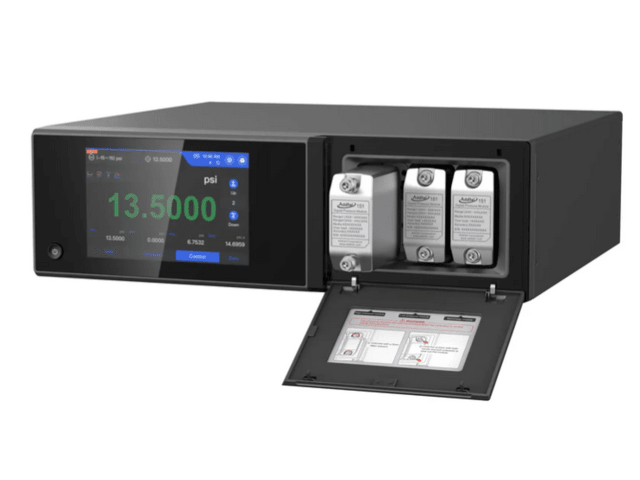

Additel 773
Pressure Controller / Generator
- Pressure ranges from -380 inH2O (-0.95 bar) to 400 inH2O (1 bar)
- Two removable internal pressure modules
- 0.02%FS accuracy
- Control stability of 0.003%FS
- Ultra-High speed pressure generation and control
- Optional barometric pressure module
- Built-in differential pressure pump
- Large 7" color touch screen display
- Multi-automatic test functions:pressure switch, test, leak test, PSV test, etc.
- Modular design for easy maintenance, greatly reducing on-site downtime
These modular pressure controllers combine
cutting-edge control/measurement technology, modular design, and
user-friendly features. The Additel 773 controller series is optimized
for low pressure work by utilizing Additel’s proven low-pressure pump
technology in combination with control capabilities that revolutionized
the industry as seen in the well-known handheld model ADT760. For users
who require automated production, test, and calibration, Additel has the
workload covered with these pressure controllers. The ADT773 can be
quickly outfitted with two controlling modules and one reference
barometric module to cover a wide pressure range.
