Additel 761A Automated Pressure Calibrator
Automated Pressure Calibrator

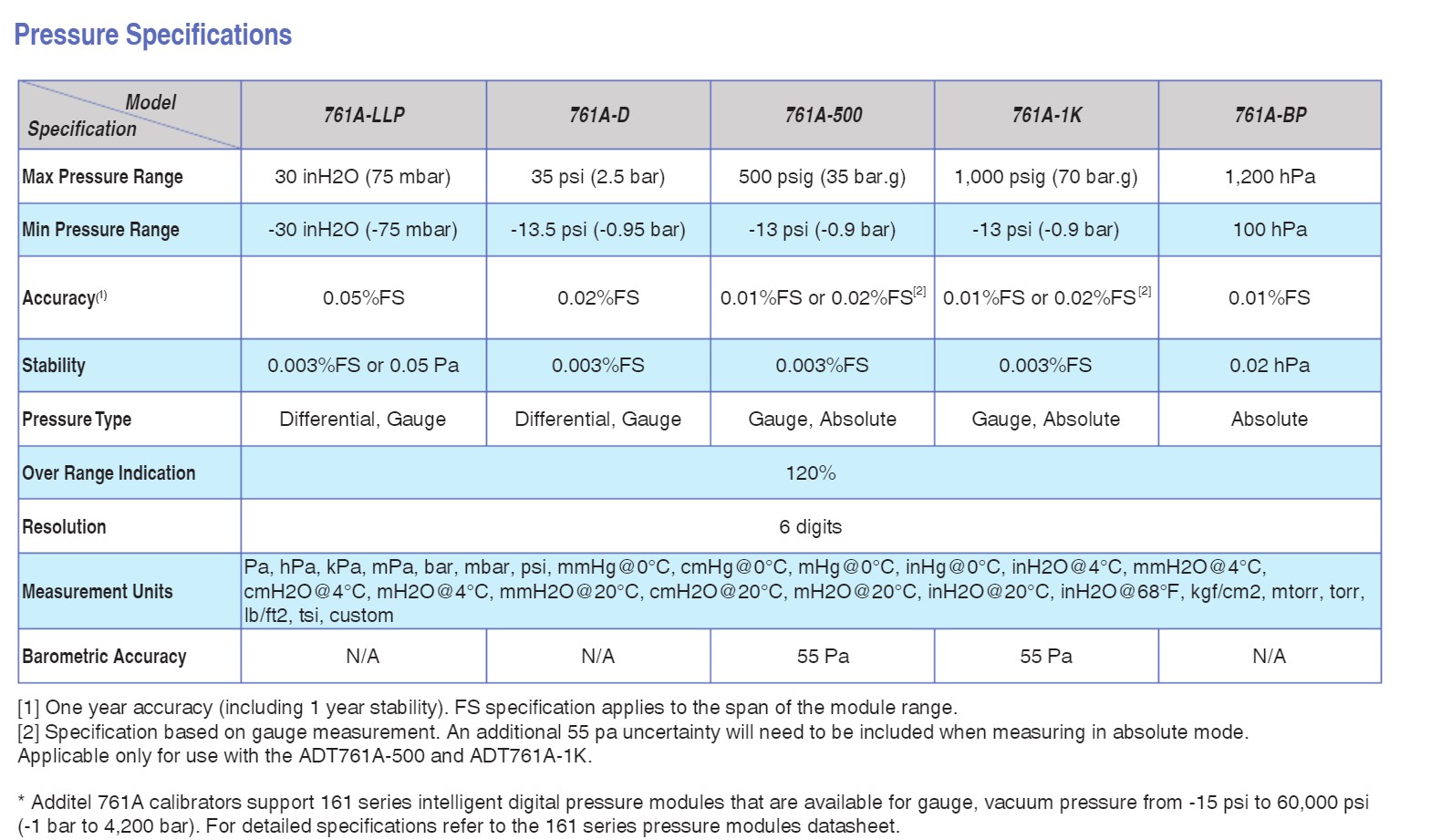

- Automated and self-contained pressure generation and control to 1000 psi ( 69 bar) or 1200 hPa
- Standard accuracy models to 0.02%FS
- Two removable internal pressure modules for multi-range selection (Single pressure module for barometric)
- Control stability to 0.003%FS or 0.02 hPa
- Portable, designed for use in the field and in the lab
- Ability to measure two external pressure modules
- Wi-Fi, Bluetooth, USB and Ethernet communication
- HART and profibus communication
- Data logging and task management
- Patented electric pump technology and improved speed
- ISO 17025-accredited calibration w/data included
At Additel, innovation and continuous
improvement are part of our company's culture and the products
we introduce. When we set out to deliver the Additel 761A
series calibrators, we knew we needed to provide breakthrough
improvements and additional value to the existing line of
calibrators (Additel 761 series). The ADT761A has many
improvements: increased pressure range to 1,000 psi (70 bar),
removable internal pressure modules to 0.02%FS, increased speed to
pressure, ability to read two external pressure modules, touch
screen display, Wi-Fi, Bluetooth, and Ethernet communications, double
the original battery life, and more!
https://additel.com/download/datasheet/761A/761A_Automated_Pressure_Calibrators.pdf
https://additel.com/download/catalog_selection_guides/ADT761A%20Selection%20Guide.pdf
https://additel.com/download/user%20manual/761A%20User%20Manual.pdf
https://additel.com/download/user%20manual/Additel%20Hart%20Communication%20Manual.pdf
